Prev monitor: bjl-gm

Prev in Asia: tpe-tw

Next monitor: bma-se

Next in Asia: cgk-id

To main statistics page

blr-in

Residential (Airtel)

Bangaluru, IN

Time range	2016-02-06 03:38 to 2016-02-07 16:24 UTC (1 day 13 hours) (1914 days ago)
Total traces	403372
Traces with responding destinations	554 (0.137%)
ASes with responding destinations	221 (1.309% out of 16889)
Prefixes with responding destinations	484 (0.521% out of 92819)
Protocol version	v4

Generated for cycle 4527 on 2016-02-08 11:33 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

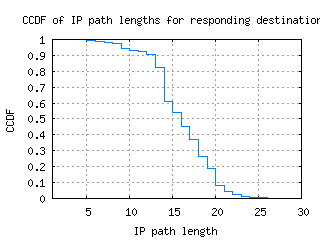

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	13	14	16	19	20	27


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	4	5	6	7	8	12


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	4	5	6	7	9	32


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	1	1	1	3	3	12



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	182.211	224.320	294.889	364.325	475.366


• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
