pek-cn

CNNIC

Beijing, CN (6)

Time range	2015-02-10 08:27 to 2015-02-11 17:42 UTC (1 day 9 hours) (2275 days ago)
Total traces	371052
Traces with responding destinations	51409 (13.855%)
ASes with responding destinations	3897 (24.994% out of 15592)
Prefixes with responding destinations	19194 (21.655% out of 88634)
Protocol version	v4

Generated for cycle 3809 on 2018-08-28 13:22 UTC

All images can be clicked on for more detailed information.

Median RTT per country and US state

Mapping RTT by political boundaries can reveal where high latency issues are located.

• Median RTT per country and US state


Path Dispersion

The paths taken by different traces show where the majority of a monitor's traffic travels.

• AS Path Dispersion (by AS Hop)

  AS connectivity near monitor

• AS Path Dispersion (by IP Hop)

  AS connectivity near monitor (with IP hop distances preserved)

• IP Path Dispersion (by IP Hop)

  IP connectivity near monitor


Path Length Distributions

Path length distributions show, on aggregate, how well-connected a monitor is to the rest of the Internet.

• CCDF of IP path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	9	11	14	17	19	37


• CCDF of AS path lengths for responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	3	4	6	6	7	14


• CCDF of IP path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  IP path length	7	9	12	15	17	39


• CCDF of AS path lengths for non-responding destinations

  percentile	10th	25th	50th	75th	90th	Max
  AS path length	4	4	5	6	7	14



RTT Distribution

An RTT distribution shows the general latency between a monitor and the rest of the Internet.

• CCDF of destination RTTs

  percentile	10th	25th	50th	75th	90th
  RTT (ms)	32.372	69.699	255.352	344.616	442.398

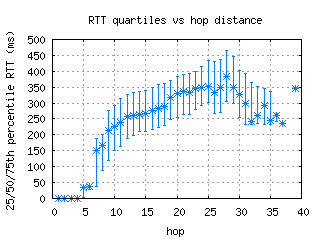

• RTT quartiles vs hop distance


RTTs vs. Distance

Comparing RTT with geographical distance helps show if latency is primarily due to distance or other factors.

• RTT density versus geographical distance

• RTT quartiles versus geographical distance
